708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

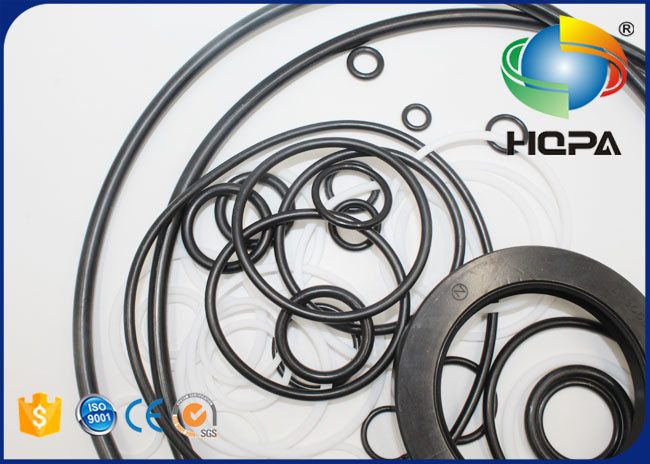

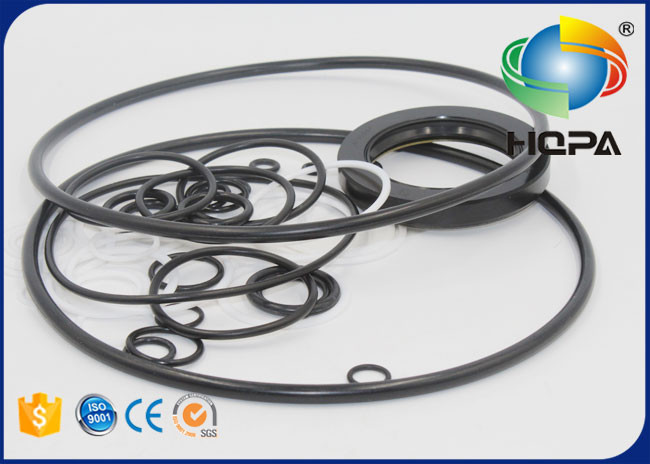

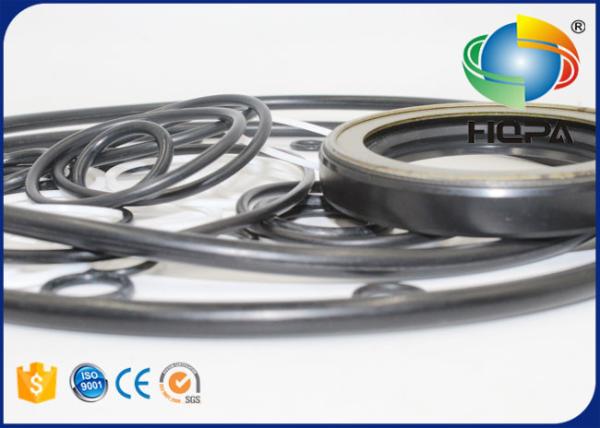

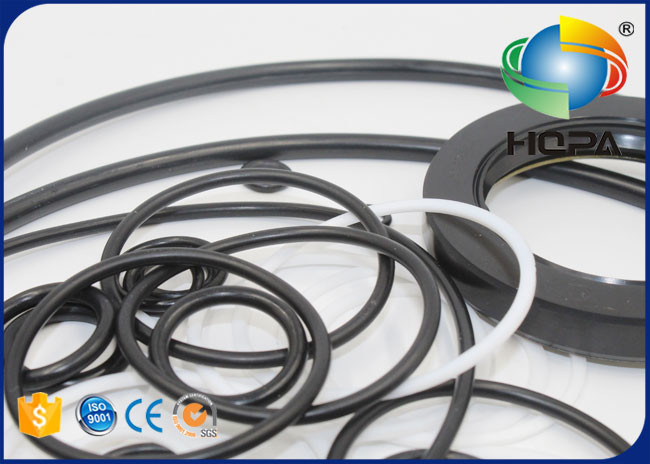

708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R

Brand Name : HQPA/OEM

Model Number : 708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit

Part Number : 708-2H-00026KT 708-2H-00027KT 708-2H-00026 708-2H-00027 7082H00026KT 7082H00027KT 7082H00026 7082H00027 Hydraulic Pump Assy

Fit for model : Komatsu PC400-7E0 PC400-8 PC400-7 PC450LC-7E0

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit for Komatsu PC400-8R
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit for Komatsu PC400-8R
Brand Name HQPA/OEM
Product Name 708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit for Komatsu PC400-8R
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-2H-00026KT 708-2H-00027KT 708-2H-00026 708-2H-00027 7082H00026KT 7082H00027KT 7082H00026 7082H00027 Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC400-7E0 PC400-8 PC400-7 PC450LC-7E0 PC450LC-7 PC450-8 PC450-7E0 PC450-7 PC400LC-8 PC400LC-7E0 PC400LC-7 PC450LC-8 PC450-7K PC450-7K-E0 PC450LCHD-8 PC450LC-7K-E0 PC450LC-7K PC400-7(-50) PC450LC-8R PC400LC-8R PC450-8R PC400-8R
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-2H-00026 708-2H-00027
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC400-7E0 PC400-8 PC400-7 PC450LC-7E0 PC450LC-7 PC450-8 PC450-7E0 PC450-7 PC400LC-8 PC400LC-7E0 PC400LC-7 PC450LC-8 PC450-7K PC450-7K-E0 PC450LCHD-8 PC450LC-7K-E0 PC450LC-7K PC400-7(-50) PC450LC-8R PC400LC-8R PC450-8R PC400-8R

4.Related parts

708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R

Part No Parts name Part No Parts name
708-2H-00026 Pump Assembly 708-2H-01027 Pump Subassembly
708-2H-04670 Case Assembly, FRONT 708-8E-16150 Plug
07002-61023 O-ring 07000-B2012 O-ring
04530-11222 Bolt, Eye 07044-12412 Plug
07002-62434 O-ring 07040-12414 Plug
708-2L-35311 Sleeve 708-2L-24680 Seal
708-2G-15412 Spool 708-2L-28540 Piston
708-2L-35360 Sleeve 708-2L-35331 Seat
708-2L-35410 Spring 708-2L-35341 Seat
708-2L-35351 Plug 07000-B1009 O-ring
07001-01009 Ring, Back-up 01583-11408 Nut
07002-62434 O-ring 702-21-57600 Valve, Pilot
01252-60635 Bolt, Hexagon Socket Head 20Y-62-22790 Band, Red
702-21-57500 Valve, Pilot 702-16-55260 Bolt
20Y-62-22830 Band, White 702-21-55400 Valve Assembly
702-21-55920 Plug 702-21-55930 Piston
702-21-55940 Spring 702-21-55951 Block
07002-12034 O-ring 07000-11008 O-ring
722-12-18240 O-ring 01252-60530 Bolt, Hexagon Socket Head
708-2H-15531 Plug 07000-B1008 O-ring
07001-01008 Ring, Back-up 07002-61423 O-ring
01643-51232 Washer 01010-81220 Bolt
08193-21012 Clip 708-2H-12430 Bearing
07000-A5190 O-ring 04020-01434 Pin, Dowel
708-1L-29340 Orifice 01010-61860 Bolt
01643-31845 Washer 708-2L-25480 Filter
708-8E-16150 Plug 07002-61023 O-ring
07040-12414 Plug 07002-62434 O-ring
708-2H-00027 Pump Assembly 708-2H-01027 Pump Subassembly
708-2H-32110 Shaft 708-1H-22150 Bearing
708-17-05010 Washer Kit 708-17-12780 Ring, Snap
708-27-22811 Seal, Oil 708-2H-22160 Spacer
04065-08225 Ring, Snap 708-2H-04750 Cylinder Block Assembly
708-18-13230 Pin 04065-05820 Ring, Snap
708-2H-33140 Seat 708-2H-33150 Spring
708-2H-23141 Seat 708-2H-23350 Guide, Retainer
708-2H-23360 Pin 708-2H-33343 Retainer, Shoe
708-2H-33311 Piston Subassembly 708-2H-04690 Cradle Subassembly
04020-01434 Pin, Dowel 07000-B1009 O-ring
01252-61235 Bolt, Hexagon Socket Head 708-2H-34150 Slider
708-2H-03411 Valve Assembly 708-2H-03022 Piston Assembly
708-2G-15320 Seal 708-2H-15310 Plug
708-2L-35760 Ball 708-2L-35770 Plug
708-2L-35690 Seal 708-2L-35170 Pin
708-3M-15670 Spool 708-2G-15290 Retainer
708-2G-15140 Seat 708-2H-15330 Spring
708-2H-15320 Spring 708-2G-15151 Seat
708-2H-15340 Spring 708-2G-14340 Screw
07000-B3038 O-ring 708-2G-15230 Ring, Back-up
708-2G-15260 Seal 708-2G-15240 Plug
07000-B2012 O-ring 07000-B2050 O-ring
708-2G-15310 Ring, Back-up 708-2L-44161 Cover
01580-10806 Nut 708-2L-35540 Nut
708-2G-15330 Ring, Wear 01252-61645 Bolt, Hexagon Socket Head
708-2H-00027 Pump Assembly 708-2H-01027 Pump Subassembly
708-2H-03510 Cover Assembly 708-2G-14310 Screw
07000-B3038 O-ring 708-2G-15230 Ring, Back-up
708-2L-35540 Nut 708-2L-44130 Cover
07000-B2050 O-ring 708-2G-15310 Ring, Back-up
01252-61645 Bolt, Hexagon Socket Head 07044-12412 Plug
07002-62434 O-ring 20B-27-11210 Bleeder
07000-B2012 O-ring 04530-11222 Bolt, Eye
708-8E-16150 Plug 07002-61023 O-ring
07040-12414 Plug 708-2H-32121 Shaft
708-1H-22150 Bearing 708-17-05010 Washer Kit
708-17-12780 Ring, Snap 708-2H-04760 Block Assembly
708-18-13230 Pin 04065-05820 Ring, Snap
708-2H-33140 Seat 708-2H-33150 Spring
708-2H-23141 Seat 708-2H-23350 Guide, Retainer
708-2H-23360 Pin 708-2H-33343 Retainer, Shoe
708-2H-33311 Piston Subassembly 708-2H-04690 Cradle Subassembly
04020-01434 Pin, Dowel 07000-B1009 O-ring
01252-61235 Bolt, Hexagon Socket Head 708-2H-32130 Coupling
708-2H-12420 Ring 708-2H-34150 Slider
708-2H-03411 Valve Assembly 708-2H-03022 Piston Assembly
708-2G-15320 Seal 708-2H-15310 Plug
708-2L-35760 Ball 708-2L-35770 Plug
708-2L-35690 Seal 708-2L-35170 Pin
708-3M-15670 Spool 708-2G-15290 Retainer
708-2G-15140 Seat 708-2H-15330 Spring
708-2H-15320 Spring 708-2G-15151 Seat
708-2H-15340 Spring 708-2G-14340 Screw

5. Related models:

PC400-7E0 PC400-8 PC400-7 PC450LC-7E0 PC450LC-7
PC450-8 PC450-7E0 PC450-7 PC400LC-8 PC400LC-7E0
PC400LC-7 PC450LC-8 PC450-7K PC450-7K-E0 PC450LCHD-8
PC450LC-7K-E0 PC450LC-7K PC400-7(-50) PC450LC-8R PC400LC-8R
PC450-8R PC400-8R PC100US-3 D65P-11D PC850SE-8
PC3000-6E PC340NLC-6K PC400LC-5 PC200LC-6LE PC1250SP-8
D135A-2 D85A-21-E PW160-7K PC200LC-5 PC30-5
PC340LCD-7EO PC400-1 PW180-7K D65A-11D PC850SE-8R
PW150-1 PC200LC-8E0 D31PG-20A D85PX-15R D85A-21A
D21P-8T D60O-8 PC300-5 PC380UUM-2 PC160LC-7-E0
D50P-15 PC75US-3 PC15-2A D65PX-15E0 D85A-21B
PC600LC-7K PC270LL-7L PC650SE-5 D41P-6 PC750SE-6
PC290NLC-6K PC180NLC-5K PC240NLC-7K PC290LC-10 D20A-7
PC150LC-3 D375A-5 PC270LC-8 PC220-3 PC340LCD-7K
D155A-6R PC600-6A D20Q-6 PC750SE-7K PC200LC-8M0
PC600LC-6KJ-KU D40AF-1 PC60-7S PC120-5C PC60-3
PC60-6S PC100U-2 PC350-7E0 PC350-7-AA PC230NHD-8K

Welcome to contact us, we can provide high quality and the best price!

708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R708-2H-00026 708-2H-00027 Hydraulic Main Pump Seal Kit For Komatsu PC400-8R
