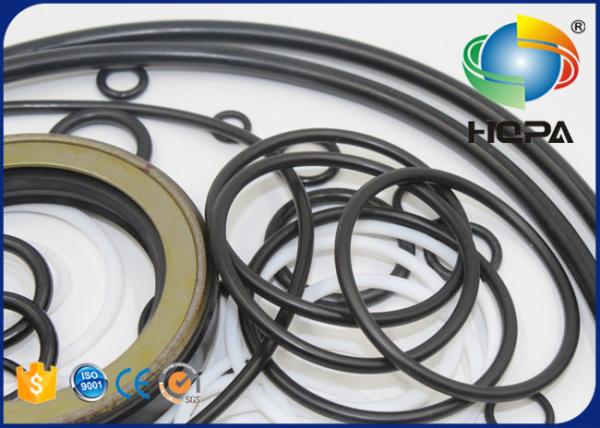

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Brand Name : HQPA/OEM

Model Number : 708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit

Part Number : 708-2G-00022KT 708-2G-00023KT 708-2G-00022 708-2G-00023 7082G00022KT 7082G00023KT 7082G00022 7082G00023 Hydraulic Pump Assy

Fit for model : Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
Brand Name HQPA/OEM
Product Name 708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-2G-00022KT 708-2G-00023KT 708-2G-00022 708-2G-00023 7082G00022KT 7082G00023KT 7082G00022 7082G00023 Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-2G-00022 708-2G-00023
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

4.Related parts

708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Part No Parts name Part No Parts name
708-2G-00023 PUMP ASS'Y 708-2G-00022 PUMP ASS'Y
708-2G-01021 PUMP SUB ASS'Y 708-2G-04115 CASE ASS'Y, FRONT
708-2G-04112 CASE ASS'Y, FRONT 708-8E-16150 PLUG
07002-61023 O-RING 708-2L-23920 O-RING
07040-12414 PLUG 07002-62434 O-RING
708-1W-28910 O-RING 708-2L-25650 ORIFICE
04530-01222 BOLT,EYE 07044-12412 PLUG
07002-32434 O-RING 708-2G-00024 PUMP ASS'Y
708-2G-00022 PUMP ASS'Y 708-2G-01021 PUMP SUB ASS'Y
708-2G-12111 SHAFT 708-2G-12251 BEARING
708-2G-05010 WASHER KIT 708-1F-12270 RING, SNAP
708-2G-15240 PLUG 07000-B2012 O-RING
07000-B2050 O-RING 708-2G-15310 RING
708-2G-14190 COVER 01580-10806 NUT
708-2L-35540 NUT 708-2G-15330 RING ,WIRE
01252-61645 BOLT 708-2G-14310 SCREW
07000-B3038 O-RING 708-2G-15230 RING BACK UP
708-2L-35540 NUT 708-2G-14170 COVER
07000-B2050 O-RING 708-2G-15310 RING
01252-61645 BOLT 708-2G-14120 SLIDER
708-2G-03510 VALVE ASS'Y 708-2G-03520 PISTON ASS'Y SERVO
708-2G-15320 SEAL 708-2G-15221 PLUG
708-2L-35760 BALL 708-2L-35770 PLUG
708-2L-35690 SEAL 708-2L-35170 PIN
708-2G-15211 SPOOL 708-2G-15290 RETAINER
708-2G-15140 SEAT 708-2G-15270 SPRING
708-2G-15280 SPRING 708-2G-15151 SEAT
708-2G-15150 SEAT 708-2G-15250 SPRING
708-2G-14340 SCREW 07000-B3038 O-RING
708-2G-15230 RING BACK UP 708-2G-15260 SEAL
708-2G-15240 PLUG 07000-B2012 O-RING
07000-B2050 O-RING 708-2G-15310 RING BACK UP
708-2G-14190 COVER 01580-10806 NUT
708-2L-35540 NUT 708-2G-15330 RING WARE
708-2G-12151 BEARING 07000-A5185 O-RING
04020--01434 PIN 07000-B2012 O-RING
01010-61655 BOLT 01643-51645 WASHER
07000-B2014 O-RING 708-2L-25480 FILTER
708-8E-16150 PLUG 07002-61023 O-RING
708-2L-23920 O-RING 708-2G-14210 SCREW
07000-B3038 O-RING 708-2G-15230 RING BACK UP
708-2L-35540 NUT 708-2G-14170 COVER
07000-B2050 O-RING 708-2G-15310 RING BACK UP
01252-61645 BOLT 708-2L-35530 PLUG
07002-61023 O-RING 708-2L-23920 O-RING
702-21-55600 PILOT VALVE 702-21-55901 PILOT VALVE
01252-60635 BOLT 20Y-62-22790 BAND, RED
702-21-55701 PILOT VALVE 702-21-55700 PILOT VALVE
702-16-55260 BOLT 20Y-62-22830 BAND, WHITE
702-21-55400 VALVE ASS'Y 702-21-55920 PLUG
702-21-55930 PISTON 702-21-55940 SPRING
702-21-55951 BLOCK 702-21-55950 BLOCK
07002-12034 O-RING 07000-11008 O-RING
722-12-18240 O-RING 01252-60530 BOLT
708-2G-03420 PLUG SUB ASS'Y 708-2G-15670 PLUG
07000-B1009 PLUG 07000-B1008 O-RING
07001-01008 RING 07000-B1007 O-RING
07001-01007 RING,BACK-UP 07002-61423 O-RING
708-2L-23950 O-RING 01643-51232 WASHER
01010-81220 BOLT 08193-21012 CLIP
708-2L-35311 SLEEVE 708-2L-24680 SEAL
708-2G-15412 SPOOL 708-2L-28540 PISTON
708-2L-35360 SLEEVE 708-2L-35260 SLEEVE

5. Related models:

PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7
PC350-7-AA PC350LC-7-BA PC350-7 PC750SE-7 PC210-6-A1
PC450LC-8R PC340LC-7K PC650-6A PC600LC-6A-KJ D40PL-3
PC228USLC-1 PC30-6 D40PF-3A PC15-3 PC200LC-3
PC300-7 PC30MR-1 D155A-6R PC800-8R1 D31PL-20
PC300-5C PC120-6H PC120-5Z PC03-2 PC240LC-3K
PC650LC-5 PW220-7E0 PC20MR-2-A D60PL-8 PW180-10
PC07-2 PC150HD-5K PC100L-1 PC220-1 PC190LC-8
D60O-8 D75A-1 PC300LC-5 PC88MR-8 PC130-6K
PC350LL-7E0 PC1600-1 PC138USLC-10 PC95-1 D85A-21-E
D40AM-3 PC228US-3N PC40R-8 PW100-1 PC200LL-7L
PC130-5S PC600LC-8R PC30R-7 D20S-6 PC40-1

Welcome to contact us, we can provide high quality and the best price!
