708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Brand Name : HQPA/OEM

Model Number : 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit

Part Number : 708-2H-00450KT 708-2H-00022KT 708-2H-00450 708-2H-00022 7082H00450KT 7082H00022KT 7082H00450 7082H00022 Hydraulic Pump Assy

Fit for model : Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
Brand Name HQPA/OEM
Product Name 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-2H-00450KT 708-2H-00022KT 708-2H-00450 708-2H-00022 7082H00450KT 7082H00022KT 7082H00450 7082H00022 Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-2H-00450 708-2H-00022
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

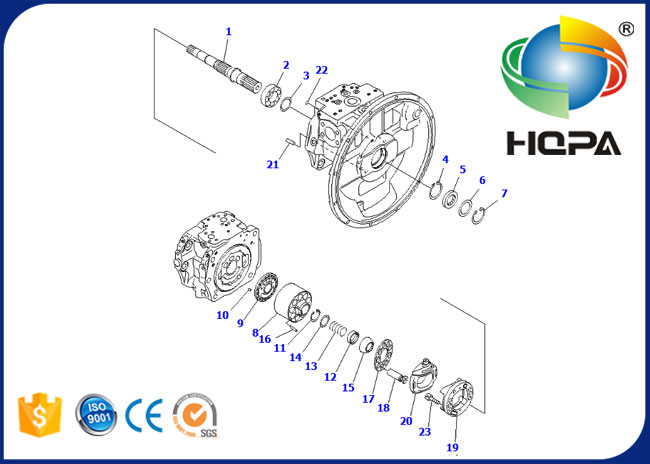

4.Related parts

708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

Part No Parts name Part No Parts name
708-2H-00022 Pump Assembly 708-2H-01450 Pump Subassembly
708-2H-04670 Case Assembly,Front 708-8E-16150 Plug
07002-61023 O-ring 07000-B2012 O-ring
04530-11222 Bolt, Eye 07044-12412 Plug
07002-62434 O-ring 07040-12414 Plug
708-2H-21860 Plate 708-2H-04850 Gear Kit
708-2H-32311 Gear, Bevel 708-2H-32341 Pinion
708-2H-32320 Bushing 708-2H-32330 Impeller
01010-61220 Bolt 708-2H-32350 Washer
708-2H-32360 Shaft 708-2H-32370 Cover
07000-A2105 O-ring 708-2H-05120 Shim Kit
01010-81235 Bolt 01643-31232 Washer
708-2L-35311 Sleeve 708-2L-24680 Seal
708-2G-15412 Spool 708-2L-28540 Piston
708-2L-35360 Sleeve 708-2L-35331 Seat
708-2L-35410 Spring 708-2L-35341 Seat
708-2L-35351 Plug 07000-B1009 O-ring
07001-01009 Ring, Back-up 01583-11408 Nut
07002-62434 O-ring 702-21-57600 Valve, Pilot
01252-60635 Bolt, Hexagon Socket Head 20Y-62-22790 Band, Red
702-21-57500 Valve, Pilot 702-16-55260 Bolt
20Y-62-22830 Band, White 702-21-55400 Valve Assembly
702-21-55920 Plug 702-21-55930 Piston
702-21-55940 Spring 702-21-55951 Block
07002-12034 O-ring 07000-11008 O-ring
722-12-18240 O-ring 01252-60530 Bolt, Hexagon Socket Head
708-2H-15531 Plug 07000-B1008 O-ring
07001-01008 Ring, Back-up 07002-61423 O-ring
01643-51232 Washer 01010-81220 Bolt
08193-21012 Clip 708-2H-12430 Bearing
07000-A5190 O-ring 04020-01434 Pin, Dowel
708-1L-29340 Orifice 01010-61860 Bolt
01643-31845 Washer 708-2L-25480 Filter
708-8E-16150 Plug 07002-61023 O-ring
708-2H-32110 Shaft 708-1H-22150 Bearing
708-17-05010 Washer Kit 708-17-12780 Ring, Snap, Snap
708-2H-22570 Seal, Oil 708-27-22811 Seal, Oil
708-2H-22160 Spacer 04065-08225 Ring, Snap
708-2H-04750 Cylinder Block Assembly 708-18-13230 Pin
04065-05820 Ring, Snap 708-2H-33140 Seat
708-2H-33150 Spring 708-2H-23141 Seat
708-2H-23350 Guide, Retainer, Retainer 708-2H-23360 Pin
708-2H-33343 Retainer, Shoe, Shoe 708-2H-33311 Piston Subassembly
708-2H-04690 Cradle Subassembly 04020-01434 Pin, Dowel
07000-B1009 O-ring 01252-61235 Bolt, Hexagon Socket Head
708-2H-34150 Slider 708-2H-03411 Valve Assembly, Pc
708-2H-03022 Piston Assembly, Servo 708-2G-15320 Seal
708-2H-15310 Plug 708-2L-35760 Ball
708-2L-35770 Plug 708-2L-35690 Seal
708-2L-35170 Pin 708-3M-15670 Spool
708-2G-15290 Retainer 708-2G-15140 Seat
708-2H-15330 Spring 708-2H-15320 Spring
708-2G-15151 Seat 708-2H-15340 Spring
708-2G-14340 Screw 07000-B3038 O-ring
708-2G-15230 Ring, Back-up 708-2G-15260 Seal
708-2G-15240 Plug 07000-B2012 O-ring
07000-B2050 O-ring 708-2G-15310 Ring, Back-up
708-2L-44161 Cover 01580-10806 Nut
708-2L-35540 Nut 708-2G-15330 Ring, Wear
01252-61645 Bolt, Hexagon Socket Head 708-2H-00450 Pump Assembly
708-2H-01450 Pump Subassembly 708-2H-03510 Cover Assembly
708-2G-14310 Screw 07000-B3038 O-ring
708-2G-15230 Ring, Back-up 708-2L-35540 Nut
708-2L-44130 Cover 07000-B2050 O-ring
708-2G-15310 Ring, Back-up 01252-61645 Bolt, Hexagon Socket Head
07044-12412 Plug 07002-62434 O-ring
20B-27-11210 Bleeder 07000-B2012 O-ring
04530-11222 Bolt, Eye 708-8E-16150 Plug
07002-61023 O-ring 07040-12414 Plug
708-2H-32210 Shaft 708-1H-22150 Bearing
708-17-05010 Washer Kit 708-17-12780 Ring, Snap, Snap
708-2H-04760 Block Assembly,Rear 708-18-13230 Pin
04065-05820 Ring, Snap 708-2H-33140 Seat
708-2H-33150 Spring 708-2H-23141 Seat
708-2H-23350 Guide, Retainer 708-2H-23360 Pin
708-2H-33343 Retainer, Shoe 708-2H-33311 Piston Subassembly
708-2H-04690 Cradle Subassembly 04020-01434 Pin, Dowel
07000-B1009 O-ring 01252-61235 Bolt, Hexagon Socket Head
708-2H-32130 Coupling 708-2H-12420 Ring

5. Related models:

PC400-7 PC400-7-M1 PC450LC-7-M1 PC450LC-7 PC450-7-M1
PC450-7 PC400LC-7-M1 PC400LC-7 PC450-7K PC450LC-7K
PC400LC-7L PC400-7(-50) PC220LL-8 PC5500-6E PC300LC-5LC
D61PXI-23 D20A-3 D475A-3 PC05-5 PC800LC-8R1
PC78US-5 D20A-6 PC400LC-5 PC850-8E0 PC300HD-7L
PC120-5S PC380UU-1 D40AF-1A PC228USLC-8 PC120LC-6
D39PX-22 PC60-6C PC350-6 PC158US-2 PC220LL-7L
D40PF-3A PC600LC-8K D61EX-12A PC20MR-2 PC09FR-1
DRP060-4A D670E PC118MR-8 PC07-2 PC400LC-6LC
D21P-3 D50A-17 PC600LC-6A-KJ PC340LCD-7K PC200CA-6
D21P-7T PC10-6 PC15-2A PC12R-8 PC160-6K
PC600LC-8 PC200-6Z PC350LC-7 D40A-1 PC600-6KJ-KU
PC09-1 PC450LC-6K PC60L-6 PC70-6 PW170ES-6K

Welcome to contact us, we can provide high quality and the best price!
