708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit For Komatsu PC200-8E0

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit For Komatsu PC200-8E0

Brand Name : HQPA/OEM

Model Number : 708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

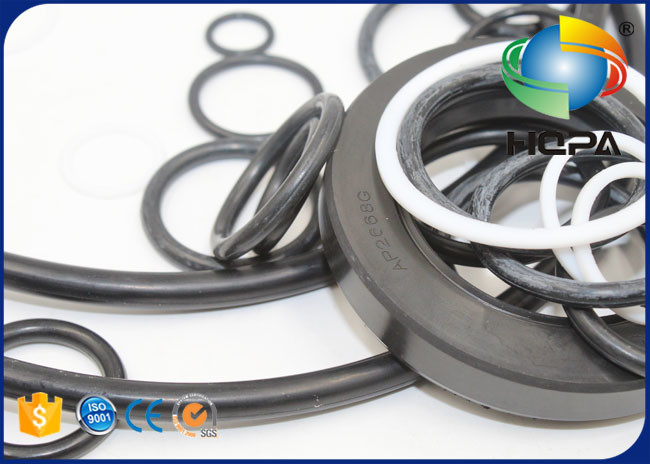

Product : 708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit

Part Number : 708-2L-00500KT 708-2L-00790KT 708-2L-00500 708-2L-00790 7082L00500KT 7082L00790KT 7082L00500 7082L00790 Hydraulic Pump Assy

Fit for model : Komatsu PC200-8 PC200-8E0

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit for Komatsu PC200-8E0
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit for Komatsu PC200-8E0
Brand Name HQPA/OEM
Product Name 708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit for Komatsu PC200-8 PC200-8E0
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-2L-00500KT 708-2L-00790KT 708-2L-00500 708-2L-00790 7082L00500KT 7082L00790KT 7082L00500 7082L00790 Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC200-8 PC200LC-8 PC200LC-8E0 PC200F-8 PC200-8E0
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-2L-00500 708-2L-00790
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC200-8 PC200LC-8 PC200LC-8E0 PC200F-8 PC200-8E0

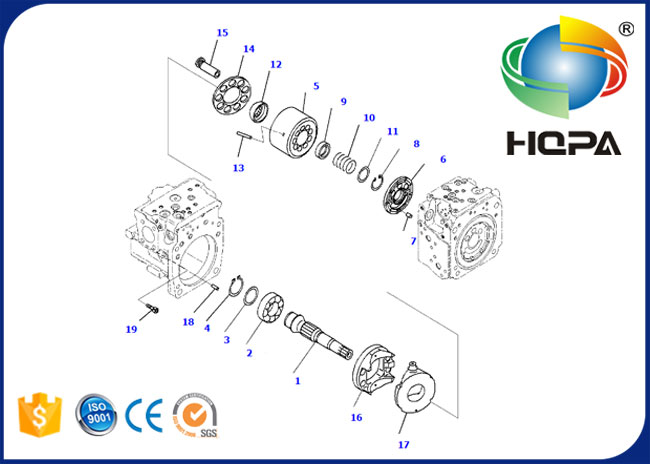

4.Related parts

708-2L-00500 708-2L-00790 Hydraulic Main Pump Seal Kit For Komatsu PC200-8E0

Part No Parts name Part No Parts name
708-2L-01500 Pump Assembly 708-2L-01500 Pump Subassembly
708-2L-06440 Case Assembly,Front 07000-B1009 O-ring
07044-12412 Plug 07002-62434 O-ring
04530-11222 Bolt, Eye 708-8E-16150 Plug
07002-61023 O-ring 708-2L-35311 Sleeve
708-2L-24680 Seal 708-2L-35430 Spool
708-2L-28540 Piston 708-2L-35360 Sleeve
708-2L-35331 Seat 708-2L-35560 Spring
708-2L-35341 Seat 708-2L-35351 Plug
07000-B1009 O-ring 07001-01009 Ring, Back-up
01583-11408 Nut 07002-62434 O-ring
702-21-57400 Valve, Pilot 723-11-19960 O-ring
702-21-54910 O-ring 01252-60635 Bolt, Hexagon Socket Head
20Y-62-22790 Band, Red 20Y-62-22830 Band, White
20Y-62-22810 Band, Yellow 708-2L-35941 Plug
07000-B1008 O-ring 07001-01008 Ring, Back-up
07002-61423 O-ring 708-2L-32260 Bearing
07000-A5165 O-ring 04020-01228 Pin, Dowel
07000-B2012 O-ring 708-2L-25480 Filter
01010-61655 Bolt 01643-31645 Washer
708-8E-16150 Plug 07002-61023 O-ring
708-1L-29340 Orifice 708-2L-00500 Pump Assembly
708-2L-01500 Pump Subassembly 708-2L-32160 Shaft,Front
708-2L-32150 Bearing 708-2E-05040 Washer Kit
708-25-12790 Ring, Snap 708-25-52861 Seal, Oil
708-2L-22160 Spacer 04065-06825 Ring, Snap
708-2L-06470 Block Assembly,Front 720-68-19610 Pin
04065-04818 Ring, Snap 708-2L-23131 Seat
708-2L-33160 Spring 708-7L-13140 Seat
708-2L-23351 Guide, Retainer, Retainer 708-2L-23360 Pin
708-2L-33350 Retainer, Shoe, Shoe 708-2L-33430 Piston Subassembly
708-2L-06630 Cradle Assembly 04020-01228 Pin, Dowel
01252-61230 Bolt, Hexagon Socket Head 708-2L-34180 Slider
708-2L-06650 Valve Assembly 708-2L-06660 Piston Assembly, Servo
708-2L-35680 Seal 708-2L-35260 Plug
708-2L-35760 Ball 708-2L-35770 Plug
708-2L-35690 Seal 708-2L-35280 Pin
708-2L-35860 Spool 708-2L-35630 Retainer
708-2L-35641 Seat 708-2L-35240 Spring
708-2L-35730 Spring 708-2L-35650 Seat
708-2L-35250 Spring 708-2L-34330 Screw
07000-B3034 O-ring 708-2L-35210 Ring, Back-up
708-2L-35710 Seal 708-2L-35270 Plug
07000-B2011 O-ring 07000-B3045 O-ring
708-2L-35750 Ring, Back-up 708-2L-34310 Cover
01580-10806 Nut 708-2L-35290 Nut
708-2L-35670 Ring, Wire, Wire 01252-61440 Bolt, Hexagon Socket Head
708-2L-34340 Screw 07000-B3034 O-ring
708-2L-35210 Ring, Back-up 708-2L-35290 Nut
708-2L-34320 Cover 07000-B3045 O-ring
708-2L-35750 Ring, Back-up 01252-61440 Bolt, Hexagon Socket Head
07000-B1009 O-ring 07044-12412 Plug
07002-62434 O-ring 04530-11222 Bolt, Eye
20B-27-11210 Bleeder 708-8E-16150 Plug
07002-61023 O-ring 07040-12414 Plug
708-2L-32170 Shaft,Rear 708-2L-32150 Bearing
708-2E-05040 Washer Kit 708-25-12790 Ring, Snap
708-2L-06480 Block Assembly,Rear 720-68-19610 Pin
04065-04818 Ring, Snap 708-2L-23131 Seat
708-2L-33160 Spring 708-7L-13140 Seat
708-2L-23351 Guide, Retainer, Retainer 708-2L-23360 Pin
708-2L-33350 Retainer, Shoe, Shoe 708-2L-33430 Piston Subassembly
708-2L-06630 Cradle Assembly 04020-01228 Pin, Dowel
01252-61230 Bolt, Hexagon Socket Head 708-2L-34180 Slider
708-2L-06650 Valve Assembly 708-2L-06660 Piston Assembly, Servo
708-2L-35680 Seal 708-2L-35260 Plug
708-2L-35760 Ball 708-2L-35770 Plug
708-2L-35690 Seal 708-2L-35280 Pin
708-2L-35860 Spool 708-2L-35630 Retainer
708-2L-35641 Seat 708-2L-35240 Spring
708-2L-35730 Spring 708-2L-35650 Seat
708-2L-35250 Spring 708-2L-34330 Screw
07000-B3034 O-ring 708-2L-35210 Ring, Back-up
708-2L-35710 Seal 708-2L-35270 Plug
07000-B2011 O-ring 07000-B3045 O-ring
708-2L-35750 Ring, Back-up 708-2L-34310 Cover
01580-10806 Nut 708-2L-35290 Nut
708-2L-35670 Ring, Wire, Wire 01252-61440 Bolt, Hexagon Socket Head

5. Related models:

PC120-5S PC5500 PC380LC-7K D85EX-15 PC290NLC-8K D50A-17
PC120-5X PC5500-1 PC380UU-1 D85EX-15E0 PC290NLC-6K D50A-18
PC120-5Z PC5500-6 PC380UU-2 D85EX-15R PC290NLC-7K D50P-15
PC120-6 PC5500-6E PC380UU-3 D85MS-15 PC30-1 D50P-16
PC120-6E PC60-2 PC380UUM-2 D85P-18 PC30-3 D50P-17
PC120-6E0 PC60-3 PC390LC-10 D85P-21 PC30-5 D50P-18
PC120-6H PC60-5 PC390LL-10 D85PX-15E0 PC30-6 D50P-18A
PC120-6J PC60-6 PC3000-1 D85PX-15R PC30-7 D50PL-16
PC120-6S PC60-6C PC3000-1A D87E-2 PC300 D50PL-17
PC120-6Z PC60-6S PC3000-1E D87P-2 PC300-1 D51EX-22
PC120-6Z-A1 PC60-6Z PC3000-6 DBB041-1 PC300-2 D51PX-22

Welcome to contact us, we can provide high quality and the best price!
