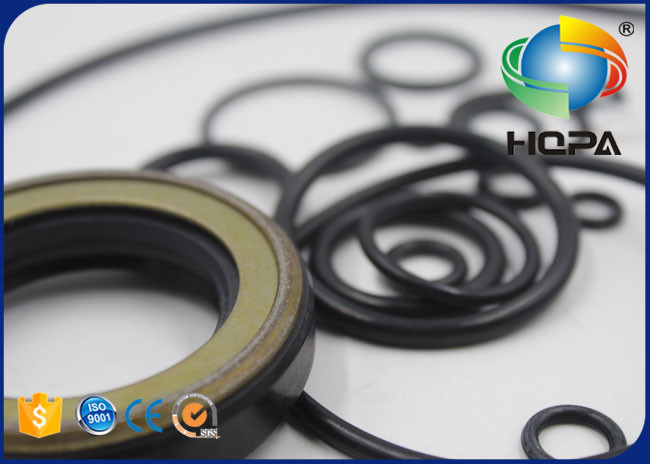

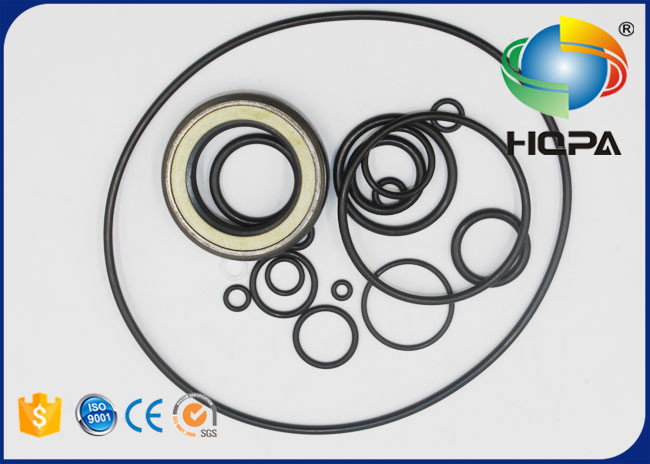

708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit For Komatsu PC60-7

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit For Komatsu PC60-7

Brand Name : HQPA/OEM

Model Number : 708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : 708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit

Part Number : 708-1W-00111KT 708-1W-00111 7081W00111 7081W00111KT Hydraulic Pump Assy

Fit for model : Komatsu PC60-7 Hydraulic Main Pump

Group : Hydraulic Main Pump Seal Kit / Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit for Komatsu PC60-7
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.


2.General Product Information:

708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit for Komatsu PC60-7
Brand Name HQPA/OEM
Product Name 708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit for Komatsu PC60-7
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. 708-1W-00111KT 708-1W-00111 7081W00111 7081W00111KT Hydraulic Pump Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC60-7
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: 708-1W-00111KT 708-1W-00111
Group: Hydraulic Main Pump Seal Kit
Fit for model: Komatsu PC60-7

4.Related parts

708-1W-00111KT 708-1W-00111 Hydraulic Main Pump Seal Kit For Komatsu PC60-7

Part No Parts name Part No Parts name
708-1W-00111 PUMP ASS'Y 708-1W-01111 PUMP SUB ASS'Y
708-1W-04110 CASE ASS'Y 07044-12412 PLUG
07002-62434 O-RING 04530-11018 BOLT,EYE
720-68-19870 PLUG 07002-61223 O-RING
706-8E-14191 PLUG 07002-11823 O-RING
708-1W-25730 ORIFICE 07002-61023 O-RING
708-1W-22310 SHAFT 708-1W-22140 BEARING
708-23-05011 WASHER KIT 708-23-12840 RING,SNAP
04065-07225 RING 708-1W-22320 BEARING
708-8D-12221 SEAL,OIL 708-1W-22160 SPACER
04065-05520 RING 720-68-19610 PIN
708-1W-23351 GUIDE,RETAINER 708-7L-13360 PIN
708-1W-23150 SPRING 708-1W-23130 SEAT
708-1W-23140 SEAT 04065-04218 RING,SNAP
708-1W-33340 RETAINER,SHOE 708-1W-33310 PISTON SUB ASS'Y
708-1W-04160 CRADLE ASS'Y 708-1W-04150 CRADLE SUB ASS'Y
04020-01024 PIN 01010-81035 BOLT
01643-31032 WASHER 07000-B2011 O-RING
07000-02145 O-RING 708-1W-24150 PISTON,SERVO
708-1W-24450 SLIDER 708-1W-24250 BOLT,ADJUST
07002-63334 O-RING 708-1W-24311 BOLT,ADJUST
07002-62434 O-RING 708-1W-24350 SPRING
708-1W-25840 LEVER 708-1W-26132 PIN
708-1W-26113 COVER 07000-03045 O-RING
01010-80830 BOLT 01643-30823 WASHER
708-1W-26210 PIN 708-1W-26221 SLIDER
708-1W-26230 WASHER 01580-10605 NUT
708-1W-25110 PISTON 708-1W-25150 SPRING
708-1W-25140 SEAT 708-1W-25160 SPRING
708-1W-25181 SPOOL 708-1W-25192 SLEEVE
708-1W-25381 NIPPLE 708-1W-25391 PIN
07002-63034 O-RING 708-1W-25170 SEAT
708-1W-25351 WASHER 708-1W-25311 NUT
07002-11223 O-RING 708-1W-25523 SLEEVE
708-1W-25513 SPOOL 708-1W-25550 SPRING
708-1W-25561 PLUG 07000-12010 O-RING
07001-02010 RING 01583-11811 NUT
07002-62434 O-RING 708-1W-25591 SEAT
708-1W-25580 SEAT 708-1W-25630 SEAL
708-1W-28750 PLATE 07000-12060 O-RING
01010-81235 BOLT 01643-31232 WASHER

Welcome to contact us, we can provide high quality and the best price!
