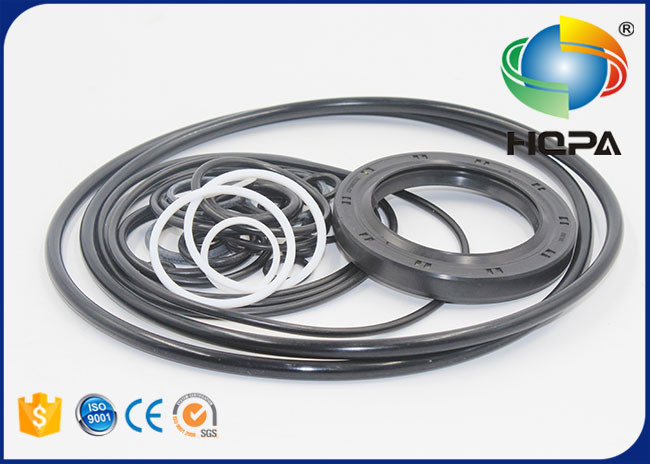

VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

Product Categories
Guangzhou Sonka Engineering Machinery Co., Ltd.
Contact Now

VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

Brand Name : HQPA/OEM

Model Number : VOE14554877 14554877 Hydraulic Main Pump Seal Kit

Certification : ISO9001

Place of Origin : CHINA(MAINLAND)

MOQ : Negotiable

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P

Supply Ability : 500 Sets per Week

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside, carton box outside

Product : VOE14554877 14554877 Hydraulic Main Pump Seal Kit

Part Number : VOE14554877 14554877

Fit for model : Volvo EC460B

Group : Hydraulic Main Pump Seal Kit / Main Pump Seal Kit

Loading Port : HUAGNPU,China (Mainland)

Packing : Neutral packing / HQPA packing

Contact Now

VOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
1.Product Description:

The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.

Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.

And to maintain the power of the hydraulic main pump.


2.General Product Information:

VOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
Brand Name HQPA/OEM
Product Name VOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
Product style Hydraulic Main Pump Seal Kit / Main Pump Seal Kit
Part No. VOE14554877 14554877
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Volvo EC460B, EC460C
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

3. Fit Model

Part Number: VOE14554877 14554877
Group: Hydraulic Main Pump Seal Kit
Fit for model: Volvo EC460B, EC460C
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com

.

4.Related parts

VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

Part No Parts name Part No Parts name
VOE14526609 Pump VOE14594327 Piston
VOE14536029 Piston VOE14536028 Seat
VOE14563796 Cylinder VOE14536030 Block
VOE14502325 Plate VOE14536025 Cylinder
VOE14536030 Block VOE14502324 Plate
VOE14502011 Plate VOE14560637 Plug
SA8230-26310 Bushing VOE979022 Hexagon nut
VOE14536032 Shaft VOE14536031 Shaft
SA8230-09360 Connecting rod SA7241-00421 Roller bearing
VOE14511981 Bearing SA8230-08850 Spacer
SA8230-09090 Hydraulic unit VOE14536027 Plate
VOE14510070 Bushing SA7223-00180 Spring
VOE14512543 Plate SA7223-00210 Plate
SA7223-00260 Support VOE14551796 Cover
SA7223-00290 Casing SA8230-08990 Cover
VOE14622760 Cover SA7223-00390 Hex. socket screw
SA8230-09900 Hex. socket screw VOE13967630 Allen Hd Screw
VOE14883837 Plug SA9415-11051 Plug
VOE14560637 Plug VOE14512382 Plug
VOE14536023 Pin VOE14536034 Pin
VOE14535454 O-ring VOE14536033 Piston
SA7223-00420 Stop SA7223-00430 Stop
SA7223-00690 O-ring VOE14535385 O-ring
VOE14535386 O-ring VOE14533034 O-ring
VOE14533035 O-ring VOE14534030 O-ring
VOE14534029 O-ring VOE14535387 O-ring
SA7223-00700 O-ring VOE14535388 Seal
VOE14692341 Ring SA7223-00650 Ring
VOE14534044 O-ring VOE914470 Snap ring
SA7242-10560 Pin SA7223-00660 Spring pin
VOE14880555 Eye bolt SA7223-00670 Set screw
SA7223-00680 Set screw VOE14512544 Cover
VOE983919 Hex. socket screw VOE14554877 Sealing kit
VOE14536037 Regulator VOE14536038 Regulator
SA8230-25880 Hex. socket screw SA8240-03580 Bolt
SA8230-25910 Hex. socket screw SA8230-25920 Bolt
SA8230-25860 Bolt SA8230-25850 Bolt
VOE14883837 Plug SA7223-00450 Non-return valve
SA14535204 Seat SA14535205 Stop
SA8230-32080 Valve VOE14502326 Casing
VOE14536036 Lever SA8230-09440 Lever
SA8230-09450 Lever SA8230-09460 Plug
SA8230-09470 Plug VOE14500061 Piston
VOE14500060 Case SA8230-09500 Rod
SA8230-09510 Seat VOE14500010 Spring
VOE14511634 Spring SA8230-09530 Stem
SA8230-09540 Screw SA8230-09240 Cover
SA8230-09550 Lock nut VOE14500009 Sleeve
SA8230-09340 Cover SA8230-09560 Piston
SA8230-09570 Seat VOE14512929 Stem
VOE14535455 O-ring SA8230-09330 Sleeve
VOE14502330 Spool SA8230-09600 Seat
SA8230-09630 Spring SA8230-09610 Spring
VOE14502332 Cover VOE14502335 Casing
VOE14502333 Plate VOE14534051 O-ring
VOE14529756 O-ring VOE14534030 O-ring
VOE14534050 O-ring VOE14534028 O-ring
VOE14534049 O-ring VOE14528250 O-ring
VOE14534048 O-ring VOE14534047 O-ring
VOE14529757 O-ring VOE14534029 O-ring
VOE14534045 O-ring VOE14534044 O-ring
SA9113-10800 Hexagon nut SA9541-01010 Retaining ring
SA8230-26960 Ring VOE914503 Retaining ring
VOE14500006 Cover SA8230-26360 Pin
SA8230-09750 Pin VOE14500005 Pin
VOE14500004 Pin SA8240-04510 Screw
VOE14535456 O-ring VOE14554876 Sealing kit
VOE14534504 Pin

5.Product information:

During installation, you must put some oil in the ring skeleton oil seal and the vertical axis line, if not vertical, oil seal lubricant seal lip will be drained from the shaft will cause the sealing lip excessive wear.

Welcome to contact us, we can provide high quality and the best price!
